Hanging sliding door soft closing system

Price:	1.0 USD
Payment Terms:	T/T,L/C
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: YDP-0573

Production Capacity: 3000PCS/DAY

Delivery Date: WITHIN 20 DAYS AFTER CONFIR...

Brand Name: YUSHUN

Surface Treatment: Plastic natural color

Color: Grey

Running time: 2-5S

Piston travel length: 43mm

Product Life: 50000 times

Means of Transport: Ocean,Air;Express

Packing: 10pcs/pp bag,20pcs/white bo...

Material: Plastic ABS,Rubber,Steel 45...

Specification: Max. weight of door 40 kgs

Size: 168x27x30mm

Pulling force: 8N

Testing Standard: Q/CYS001-2013

Application: hanging sliding door

1,Short size design to accommodate hanging door small size profile.
2,Can be installed in both end.

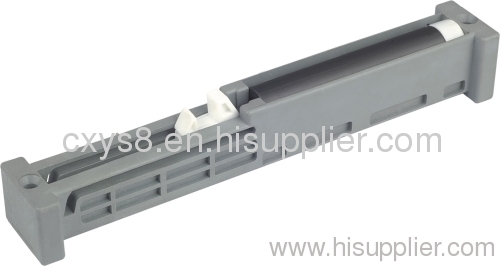

Hanging sliding door soft closing system YDP-0573
The soft closing system YDP-0573 insist of air piston,high quality spring and plastic frame.It is specially designed for the hanging sliding door,the short size design is specially to accommodate the hanging door small size profile,can be fit the smallest 70cm length door.
Installation:
1,Insert the YDP-0573 in the sliding rail,use 2pcs screw withstood the top the rail, fix an activator(metal piece) in the top of the door,Calculate the activator position to make sure to catch the soft closing system YDP-0573 hook.
Hanging sliding door soft closing system YDP-0573
Notice:
The maximum carring capacity is 40kgs.
Product drawing:
