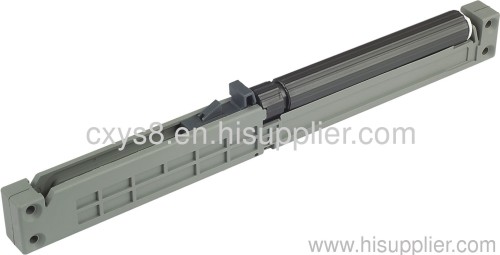

ALL-PURPOSE CLOSING BUFFER FOR THE SLIDING DOOR

Price:	1.5 USD
Payment Terms:	T/T,L/C
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: YDP-0561

Production Capacity: 2500PCS/DAY

Delivery Date: WITHIN 20 DAYS AFTER CONFIR...

Brand Name: YUSHUN

Surface Treatment: Primary color of plastic

Color: Grey

Running time: 2-4S

Piston travel length: 70.1mm

Product life: 50000 times

Means of Transport: Ocean,Air;Express

Packing: WHITE BOX,CUSTOMER'S DESIGN

Material: Plastic,rubber,steel

Specification: 252x16x34mm

Size: 252*16*38mm

Pulling force: 10N

Testing Standard: Q/CYS001-2013

Application: Sliding door, wardrobe, dra...

The damper YDP-0561 is a multi-purpose sliding door closing buffer,It is applies to various size profiles,just the profile width not less than 35mm.

    The sliding door damper YDP-0561 is an all-purpose sliding door closing buffer,the air piston/spring/plastic frame form the system. Piston is made by high quality engineering plastic POM,high hardness steel and special type rubber; Spring is made by imported high quality steel wire,50000 times life;Frame is made by PA6 plastic.
    Installation: Install the buffer YDP-0561 on the top inside of the profile,install an activator on the top of the door. Calculate the activator position to make sure to catch the buffer hook.
    Application range:Room sliding door,wardrobe,drawer,cabinet.
                                      Furniture manufacture;furniture hardware distributor;wholesale
    Application illustration:
ALL-PURPOSE CLOSING BUFFER YDP-0561 FOR THE SLIDING DOOR

Product drawing:
